Oil Filter Element for vessel
Contact Now
Product Parameters

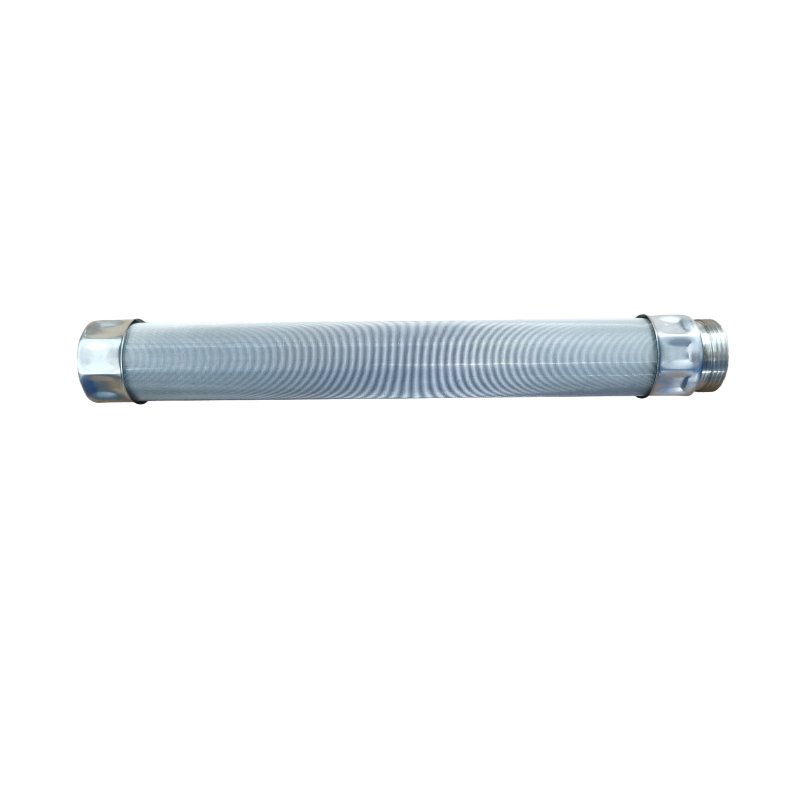

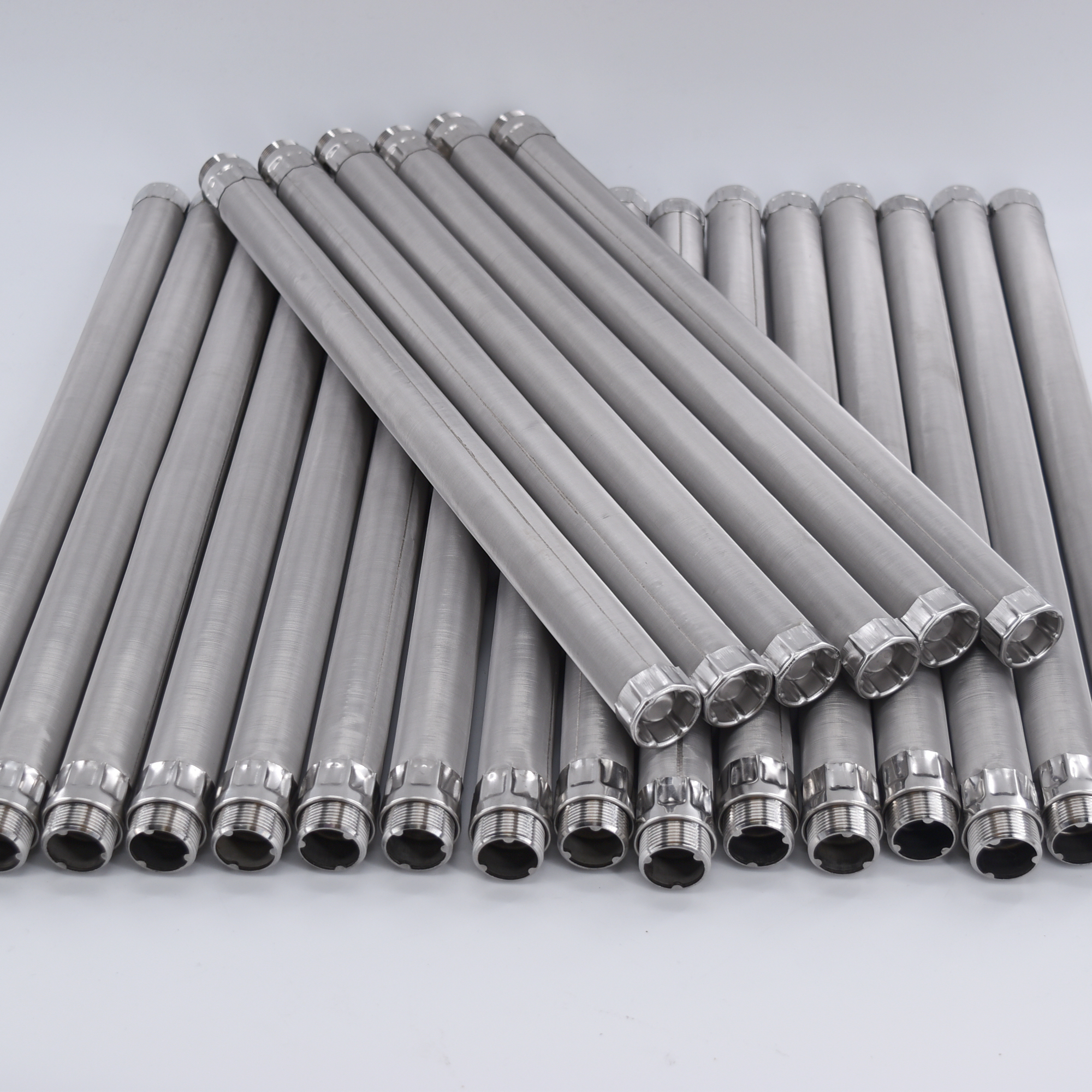

Candle filter element is made of stainless steel and features high filtration efficiency and easy cleaning.
It is primarily used in lubrication systems across industrial fields such as marine vessels, thermal/nuclear power equipment, metallurgy, and petrochemical industries.
Filtration Precision: 10μm, 20μm, 30μm
Maximum Working Pressure (MAX): 1.6 MPa
Working Medium: Lubricating Oil, Hydraulic Oil
Working Temperature: -30°C to +110°C
Connection Thread: M26*1.5
Product selection

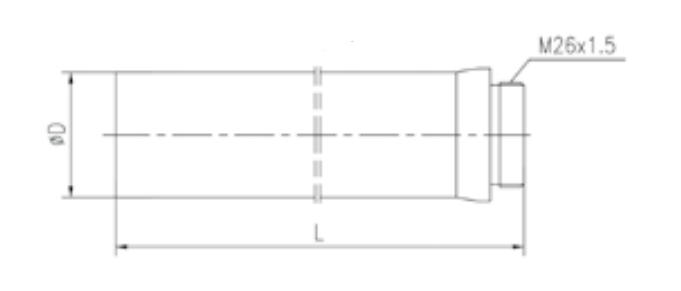

Basic Dimension Table
| Items | Dimension-mm | Length-mm |
| PCF01* | 30 | 218 |
| PCF02* | 30 | 318 |
| PCF03* | 30 | 438 |
| PCF04* | 30 | 560 |
| PCF05* | 30 | 668 |
| PCF06* | 30 | 738 |
